| Paint Test Equipment (((All Of this products made by Paint 'u.k')))
|
|
|
|
|
|
|
Electrostatic Gun Meter - E2001
|
|
"Product PDF"
|
| Range Voltage |
0–100kV |
| Range Current |
0–200μA |
| Resolution Voltage |
0.1kV |
| Resolution Current |
0.1μA |
| Accuracy |
1% |

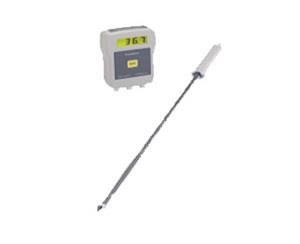

The Powdatest Electrostatic High Voltage Meter or Electrostatic Gun Tester is a precision instrument that measures both electrostatic spray gun high voltages and discharge currents.
With the Powdatest, any electrostatic sprayer can now quickly measure the voltage at the spray gun tip. This corona point is where the electrostatic voltage must be maintained at the correct voltage. The spray gun high voltage can be up to 100kV and can be either a positive or negative charge. Using the Powdatest, the actual gun voltage can be quickly and accurately measured.
There can be many reasons why the spray gun voltage may not be correct. Poor calibration, dirt and grease contamination, poor cable connections, and cable breakages, all of which could affect the actual gun voltage but not be shown on the spray equipment displays. The Powdatest offers a safe, simple and quick test to establish the correct voltage and is particularly useful for multi-gun systems.
The ability to accurately measure the discharge current during spraying is very important. The Powdatest will allow the operator to determine the optimum gun position and to detect the amount of powder applied before back-ionisation occurs. This is useful to allow spray gun systems with a set discharge current control to be quickly and easily tested.
Calibration Certificate with traceability to UKAS is an optional extra. The Certificate is supplied in a paper format and is available online through the Calibration Portal (under Browse Categories) on this website. The Calibration Portal will list all your equipment that is calibrated by Paint Test Equipment, showing the renewal dates and allowing Calibration Certificates to be viewed at any time.
Supplied in a Foam-Filled Carrying Case with High Voltage Measuring Probe, Current Test Cable and Earth Cable. |
|
|
|
|
|
| |
