Survey Meter Rados 31
|
| |
| "Product PDF" |
| |

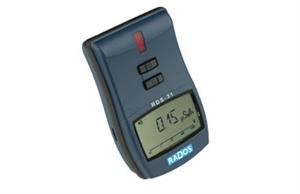

The new RDS-31S/R Multi-purpose Survey Meter is part of the RDS family of
RADOS survey meters and offers modern design and an advanced approach to
radiation monitoring. The RDS-31 features outstanding ergonomics; it is
lightweight and easy to handle with visual, audible and vibrating alarms. |
| TECHNICAL SPECIFICATIONS: |
| Radiological Characteristics |
radiation detected: gamma and X-rays, 48keV...3MeV. Alpha, Beta radiation with an external • ernal probe
• detectors: one energy-compensated GM tube, energy response according to ambient dose
equivalent H*(10)
• dose rate measurement range: 0.01 μSv/h...0.1 Sv/h or 1 μrem/h...10 rem/h
• dose measurement range: 0.01 μSv...10 Sv or 1 μrem...1000 rem
• resolution: three signifi cant digits or 0.01 μSv/h on dose rate and 0.01 μSv on dose ( 1 μrem/h on dose rate and
1 μrem on dose)
• calibration accuracy: ± 5%, 137Cs , calibration direction and in the calibration fi eld, temperature +20 °C (68°F)
• dose rate linearity: ± 15% ± least signifi cant number 0.05 μSv/h...0.1 Sv/h (5 μrem/h to 10rem/h)
• variation of the response due to photon radiation energy (RE) and angle of incidence (RE, A):
71% <RE, A < 160% (48 keV...3 MeV); ± 60°) |
| Functional Characteristics |
• two buttons to operate the instrument
• confi gurable units: Sv(/h), R(/h), with external detector Gy(/h), cps, cpm, dpm and Bq
• fl exible histogram functions ( dose rate, dose, diagnostic logging depending on confi guration, time stamp,
optional location control for mapping and repeating room measurement analysis)
• additional histogram analyzing capabilities on CSW-software
• real time clock function
• confi gurable audible, visual and vibration alarm
• RF-communication and USB-communication with suitable adapter
• customized LCD display with 5 digit 14-segment fl oating point area and special symbols for alarm, external
probe, battery, RF-communication, vibration alarm, chirp and mute |
| Electrical Characteristics |
• power supply: 2 AA size batteries (alkaline or NiMH)
• contacts for external power and charging of NiMH battery (charging conditions +5... +35°C)
• operation time with fresh alcaline batteries more than 4 months at background radiation at +23°C, 8 h use/24h
• operation time with fully charged NiMH batteries more than 1 month at background radiation at +23°C, 8 h
use/24h. At higher/lower temperatures the operation will be shorter. |
| Mechanical Characteristics |
• case high impact durable plastics reinforced with glass fi bre
• ergonomic design, rubber grip and cushion around the case
• enclosure class IP67 (IEC 60529), water proof including battery compartment
• dimensions: 100 x 67 x 33 mm (3.93 x 2.63 x 1.29 in)
• weight: 175 g without batteries (0.385 lb), 220 g with batteries (0.485 lb)
• wrist/neck strap
• belt clip |
| Environmental Characteristics |
• -25°C...+60°C (-40°F to 131°F), operating temperature
• -40°C...+70°C (-40°F to 158°F), storage temperature
• relative humidity: up to 85% at +35°C (95 °F)
• fulfi lls the RF-immunity levels of applicable standard |
| Options |
• electrical cradle or mechanical cradle e.g. for easy vehicle fi xing
• table top model
• pocket/belt clip/pouch |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
