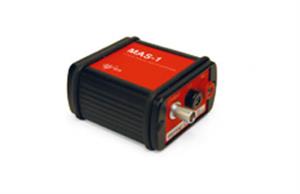

MAS-1 Probe
|
| Made By : RTI - Sweden |
| "Product PDF" |
The Simple Way for Invasive Measurements
The MAS-1 Probe is an invasive probe for measurement of mA
(tube current) and mAs. Together with Piranha or Barracuda
direct reading of mA and mAs as well as waveforms are obtained. |
| Specifications: |
| Current range |
0.1–3000 mA |
| Inaccuracy |
±1 % or ±0.01 mA |
| Charge range |
0.001 mAs–9999 mAs |
| Frequency range |
DC–500 Hz (-3 dB) |
| Size |
60 x 35 x 72 mm |
| Weight |
125 g |
| Battery life |
xaround 100 h
(Rechargeable battery with mini-USB connector)
|
| Cable length |
8 meter for Barracuda (extension available) |
| Cable length |
4 meter for Piranha (extension available) |
|
|
|
|
|
| |
