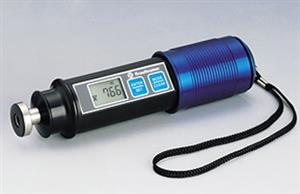

Pocket-Size Hardness Tester
|
| |
| Made By : GE - usa |
| |
| "Product PDF" |
| |
| Specifications : |
| Measuring range |
Depending on the material group,
e.g for low-alloy steel: 150-1000 HL;
75-1000 HV; 75-700 HB; 35-100 HRB;
20-70 HRC; 30-100 HS; 250-2200 N/
mm²; 9 fixed material groups stored in
the instrument |
| Display |
LCD, 4-digit display of the hardness
value and status symbols |
| Conversion scales and resolution |
HL (1.0); HV (1.0); HB (1.0); HS (0.1);
HRC (0.1); HRB (0.1); N/mm² (5.0) |
| Conversion |
According to DIN 50150, ASTM E 140,
instrument-specific conversion (Dyna) |
| Statistics |
Display of average value |
| Automatic instrument switchoff |
After 3 min. of non-use in the average mode |
| Keypad |
Membrane keypad with 2 keys |
| Power supply |
Battery operation (2 x AAA cells, NiCd,
NiMH or AlMn) |
| Operating time |
>4000 measurements depending on
battery type |
| Battery charge indication |
LowBatt indicator, instrument switchoff
with low voltage |
| Permissible temperatures |
Operation: -10°C to +50°C (14°F to 122°F)
Storage: -20°C to +70°C (-4°F to +158°F)
Lower temperatures according to
individual tests |
| Weight |
approx. 200 g / 0.4 lb. |
| Dimensions |
38 x 170 mm / 1.5" x 6.7"
(diameter x length) |
| Test attachments |
For better positioning with curved
surfaces; for spherical, hollow spherical,
cylindrical and hollow cylindrical
surfaces (Dyna 41 and Dyna 42) |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
