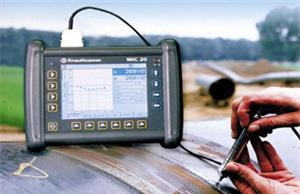

Combined Hardness Tester MIC20
|
| Made By : GE(krautkramer) - usa |
| "Product PDF" |
| Specifications : |
| Measuring ranges/conversions (UCI) |
20-1740 HV / 76-618 HB / 41-105 HRB /
20.3-68.0 HRC / 255-2180 N/mm² (only with
98 N/10 kgf handheld probe) |
| Measuring ranges/conversions (rebound) |
Depending on material group and impact device:
150-1000 HL / 75-1000 HV / 75-700 HB / 30-
100 HS / 35-100 HRB / 19-70 HRC /
250-2200 N/mm² |
| Display |
Color display or color TFT display, 1/4 VGA,
5.7”, 115.2 mm x 76.8 mm / 4.5” x 3.0” |
| Diaolog languages |
German, English (among others) |
| Conversion |
Automatically according to DIN 50150,
ASTM E 140 |
| Evaluation |
Representation of test data as a curve, histogram,
or in tabular form; calculation of statistical data,
e.g.: average, standard deviation, range |
| Automatic instrument shutdown |
After a user-selectable period of time with automatic
saving of test data and instrument settings |
| Keyboard |
Sealed membrane keypad with integrated touch
screen |
| Operating time |
With NiMH battery pack MIC 20-BAT approx.
4 hours in continuous operations |
| Battery charge indicator |
Low-Batt indicator, instrument shutdown with
low voltage |
| Operating system |
WinCE |
| Interfaces |
RS 232 bidirectional, Ethernet 10 Mbit |
| Temperature ranges |
Operation: 0 °C to 50 °C/-32 °F to 122 °F
Storage: -20 °C to 70 °C/-4 °F to 158 °F |
| Weight |
Approx. 1.4 kg / 3.1 lbs (incl. MIC 20-BAT) |
| Size |
78 mm x 215 mm x 180 mm /
3.1" x 8.5" x 7.1" (H x W x D) |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
