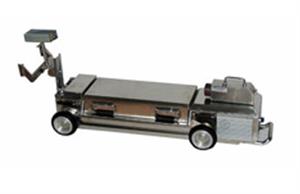

Pipeline inspection system
|
| |
|
X-ray based weld inspection helps to assure quality in pipeline Construction. The inspection of irregularities in welded seams is indispensable for quality assurance in the production of pipelines, whether for steel or other special alloys. Welded connections in pipes in use must be inspected regularly. X-ray technology has played a significant role in the field of weld inspection.
|
|
|
|
|
Technical parameter/Product
|
MODEL-1
|
MODEL-2
|
HR-90
|
|
Available Diameter mm
|
219-377
|
355-1200
|
610-1400
|
|
Wall Thickness mm
|
<=12
|
<=30
|
<=30
|
|
Total Weight kg
|
<=110 Total
|
<=160 Total
|
<=120 Total
|
|
Total Length mm
|
2800
|
2900
|
2600
|
|
Max.Gradient °
|
12
|
40
|
40
|
|
Speed m/min
|
12
|
18
|
18
|
|
Turning Radius D
|
>=7
|
>=7
|
>=7
|
|
Creep Distance km
|
>1Return
|
>4 Return
|
>4.2 Return
|
|
Drive Mode
|
2WD
|
Single/Double drive
|
四轮驱动
|
|
X-ray Unit
|
1205-1605
|
2005-2505
|
3005
|
|
Focal Spot Size mm
|
1.0*3.5
|
1.0*3.5
|
1.0*3.5
|
|
Radiation angle °
|
30*360
|
30*360
|
40*360
|
|
Max. Penetrable mm
|
12（A3 steel）
|
29（A3 steel）
|
40（A3 steel）
|
|
Exposure time min
|
0-3
|
0-3
|
0.3-7
|
|
Voltage range of exposure kV
|
120-160
|
150-250
|
170-300
|
|
Positioning Precision mm
|
±5
|
±5
|
±5
|
|
Locate Mode
|
Magnetism positioning
|
Magnetism positioning
|
Magnetism positioning
|
|
Available temperature℃
|
-20℃~+70℃
|
-20℃~+70℃
|
-20℃~+70℃
|
|
Store temperature ℃
|
-40℃~+80℃
|
-40℃~+80℃
|
-40℃~+80℃
|
|
Available teperature
|
<=90%
|
<=90%
|
<=90%
|
|
Creep length mm
|
1065
|
1627
|
1250
|
|
Power supply
|
10 lead-acid battery（12Ah）
|
10 lead-acid battery （17Ah）
|
10 lead-acid battery（17Ah）
|
|
Battery case Weight kg
|
50
|
67
|
71
|
|
Battery case dimension mm
|
790*160*115
|
945*185*195
|
590*270*200
|
|
Changer
|
CD-2
|
CD-2
|
CD-2
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
