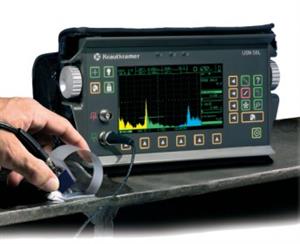

Ultrasonic Flaw Detectors - USN 58L & 58R
|
|
Made By : Ge , USA
|
|
"Product PDF"
|
|
| The USN 58L offers a transreflective “color” LCD for optimum viewing in direct sunlight. A 60 Hz update rate and “single shot” measurement technique produce a fast, smooth response. |
|
Spicifications :
|
| Range |
0.040” to 480” (1 to 12,192 mm) at steel velocity; range selectable in fixed steps or continuously variable |
| Material Velocity |
Continuously adjustable from .0394 to .6299 inches/μs (1,000 to 16,000 m/s); 65 selectable material velocities |
| Display Delay |
-20 to 3498 μs in steel (dependent on range) |
| Probe Delay/Zero Offset |
0 to 999.9 μs |
| Gain |
0 to 110 dB adjustable in selectable steps 0.1, 0.5, 1.0, 2.0, 6.0, user definable, and locked |
| Test Modes |
Pulse echo, dual, and thru-transmission |
| Pulser |
USN 58L: Square-wave excitation pulse |
| Pulse Voltage (Square wave pulser mode) |
50 to 450 V adjustable in 10 V increments |
| Pulse Width (Square wave pulser mode) |
Tunable from 50 to 1000 ns in 10 ns increments |
| Pulse Repetition Frequency |
Autolow, autohigh, manually adjustable from 15 to 2000 Hz in 5 Hz increments, external trigger |
| Pulser Energy (in Spike mode only) |
Low, high |
| Damping |
USN 58L: 50, 75, 150, 500 ohms |
| Bandwidth (amplifier bandpass) |
0.25 to 25 MHz with 10 selectable settings including broadband |
| Gate Monitors |
Two independent flaw gates controllable over entire sweep range |
| Measurement Modes |
Zero-to-first, multi-echo with selectable flank or peak detection |
| Rectification |
Positive halfwave, negative halfwave, fullwave, RF |
| Reject (suppression) |
0 to 80% linear |
| Units |
Inch, millimeter oder microsecond selectable |
| Operating Temperature |
USN 58L: 0 to 55 º C (32 to 130 º F); -25 to 70 º C (-13 to 158 º F ) storable |
| Languages |
Selectable English, German, French, Spanish, Italian, Portuguese, Dutch, Finnish, Norwegian, Swedish, Danish, Romanian, Czech, Slovakian |
| Probe Connectors |
BNC or Lemo selectable at order |
| Keypad |
International symbols |
| Battery Power |
Lithium Ion Battery Pack; 6 D-size NiMH (9.0 Ah); NiCad or alkaline cells substitutable |
| Battery Life |
8 hours on Li-Ion battery pack |
| Size (WxHxD) |
11.1” x 5.9” x 6.25” (282 x 150 x 159 mm) |
| Weight |
6.4 lbs. (2.9 kg) Li-Ion battery; 3.3 lbs. (1.5 kg) without battery |
| Color Leg |
Easy identification of leg and skip distances for angle beam inspection in A-scan or grid, background colors |
| Weld Rating Calculation |
Simplifies the rating of weld indications according to AWS specification D1.1, (formula D=A-B-C) |
| Warranty |
2 year conditional warranty on parts and labor; free 2nd year contingent upon return of unit within 13 months of purchase for recertification |
Outputs:
|
|
| TTL Go/NoGo |
Three independently assignable outputs; instantaneous, timed, latched with visual LED and audible horn alarms |
| Analog |
Four independently assignable outputs
Amplitude:
0 to 100% full screen height corresponds to 0 to 2.5V
Thickness (TOF):
0V corresponds to the value on the left side of the screen or display delay; 2.5V corresponds to the value on the right side of the screen or range
|
| I/O Port |
Bi-directional RS232, baud rate selectable up to 115, 200, direct reports to various printers |
Color Transflective LCD Display:
|
|
| Display |
5.6” x 3.1” (143 x 79 mm), 400 x 240 pixels, brightness control, 4 color schemes, 8 A-scan colors |
| A-scan Size |
314 x 200 pixels in normal mode, 220 x 100 pixels in ½ screen mode, 386 x 200 pixels in zoom mode |
| A-scan Update Rate |
60 Hz, single shot |
| A-scan Waveform Selections |
Hollow, filled, smart hollow, smart filled |
| A-scan Enhance Mode |
Sparkle, baseline, sparkle + baseline break |
Dedicatd Key Function:
|
|
| Test |
Displays the test menu, coarse range markers, then display delay & range under the A-scan upon successive key presses |
| Home |
2 keys (one left side and one right side) return instrument to main menu |
| Backlite |
Turns back lighting on and off |
| Lock |
Disables all keys and knobs |
| Question Mark |
Displays help text for the four active parameters along right side of display |
| Freeze |
Freezes the displayed A-scan image according to the setting for the freeze mode in the configuration menu (all, peak std., compare, envelope peak) |
| Copy |
Sends information to the on-board datalogger or I/O port |
| Zoom |
Expands A-Scan display area for increased screen resolution |
| dB Step |
Selects gain increments |
| Magnify |
Expands area within selected gate for increased A-Scan resolution |
Data Storage and Documentation:
|
|
| Memory |
Minimum 200 data sets store all instrument operating parameters plus A-scan; stored data sets can be easily previewed and recalled for quick, repeatable instrument setup |
| Memory Retention |
2 years |
| Alphanumeric Thickness Datalogger |
Up to 99,999 thickness readings with up to 6 user defined notes per reading (16-character) can be stored in three flexible, powerful file structures. 14-character file names with easy file navigation and viewing of both the A-Scan and thickness data provided by ½ screen testing mode. Thickness readings can be stored, viewed, cleared, or output directly to a printer |
| Thickness File Structures |
Linear (sequential), Grid (702 x 702), Custom-Linear with auto label capability |
| Alphanumeric Input |
Quick & easy using two rotary knobs |
| Inspection Memo, Notes, Header |
User definable memo (up to 252 characters), header (nine 16-character lines), & 6 (16-character) thickness reading notes to further document inspection conditions on a per file basis |
| File Preview |
Scroll to preview stored A-scan & file header fields to easily select the proper file for recall |
Options:
|
|
| DAC / TCG Option |
Multiple Curve DAC (Distance Amplitude Curve) / TCG (Time Corrected Gain) for echo amplitude adjustment and evaluation, 40 dB dynamic range, 12 dB/ μs slope, record up to 16 points, recorded points are individually editable, new points can be inserted. Display four additional curves based upon dB offset feature from originally recorded DAC curve. TCG attenuation and transfer correction features enable use on other materials and surface conditions |
| IF (Interface) Gate Option |
For automatic start of the display, gate A, gate B, and / or DAC / TCG for immersion testing applications where the water to top surface of the part varies |
| DGS Option |
Displays a curve for a particular equivalent reflector size as a function of the distance from the probe to the reflector for 25 narrowbanded probes. The ERS (Equivalent reflector size) function automatically calculates the corresponding equivalent reflector diameter in mm or inches for any echo in the measurement gate |
| BEA Backwall Echo Attenuator Option |
Allows independent gain control of the region under Gate B for backwall echo monitoring |
| VGA Output Option * |
Provides an easy way to connect to a PC monitor or PC projector for viewing by large audiences or training purposes |
| RF Output Option * |
Outputs the raw RF waveform via a standard Lemo # 00 connector for further analysis |
| HiSPD High Speed Digital Output Option |
Outputs amplitude or thickness values 20 times faster than RS 232 port |
