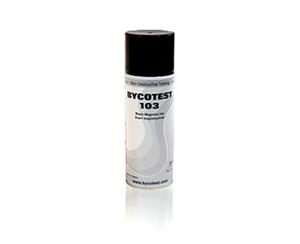

Coloured magnetic particles - 103 inK
|
| |
| Made By : BYCOTEST Sweden |
| |
|
|
| Spicifications : |
| Appearance |
Aerosol. |
| Odour |
No characteristic odour. |
| Physical data comments |
Properties related to the bulk liquid only unless otherwise stated. |
| Solubility description |
Solubility description |
| Boiling point (°C,interval) |
190 - 240 Pressure 760mmHg |
| Melting/freezing point (°C,interval) |
ca -24 |
| Density (g/cm3) |
0,750 - 0,760 / Temperature (°C) |
| Vapour density (air=1) |
ca 5 |
| Vapour pressure |
< 1 kPa / Temperature (°C) : 20 |
| Flash point (°C) |
ca 75 / Method |
| Auto ignition temp. (°C) |
ca 200 |
| Flammability limit (%) |
0,6 - 6,5 |
BYCOTEST coloured magnetic particles have been developed to cover all possible applications. The magnetic particles are available in varying particle sizes, for different carrier fluids and in several packaging.
Most commonly used is BYCOTEST 103 in aerosol, a product with high sensitivity fine grained magnetic particles, according to the specifications in AMS 3043.
Non corrosive according to the specifications in ASME Boiler and Pressure Vessel Code and EN ISO 9934-2. |
|
|
|
|
|
| |
|
|
|
|
| |
|
|
